Window Lintel Replacement & Sill Flashing

Repair or replace rusted, cracked, or failing steel lintels before expanding brick damage worsens above windows and doors.

City of Chicago Mason Contractor Class A (MC5838)General Contractor Class ELicensed & Insured

449Customer Reviews on Google, Yelp, and Angi
Yelp5.0 RatingGoogle 4.9 RatingBBB Accredited BusinessA+ Accredited
Angie's List Super Service Award
Nextdoor Neighborhood Fave badgeBuildZoom Top 1% in Illinois, 120 Point Rating badgeCity sealLicensed Mason

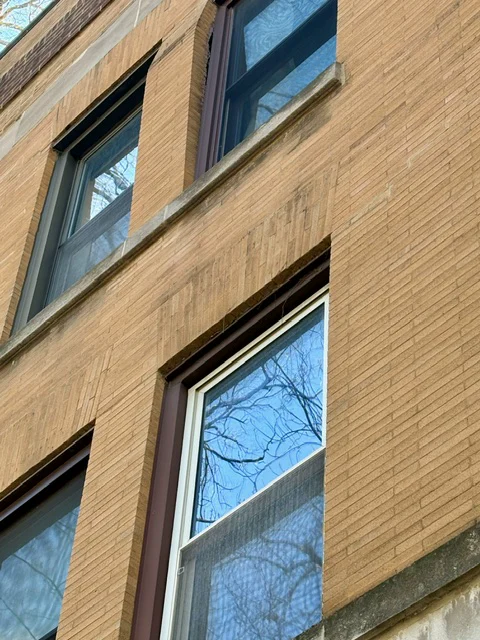

Chicago brick building before window lintel replacement
Before

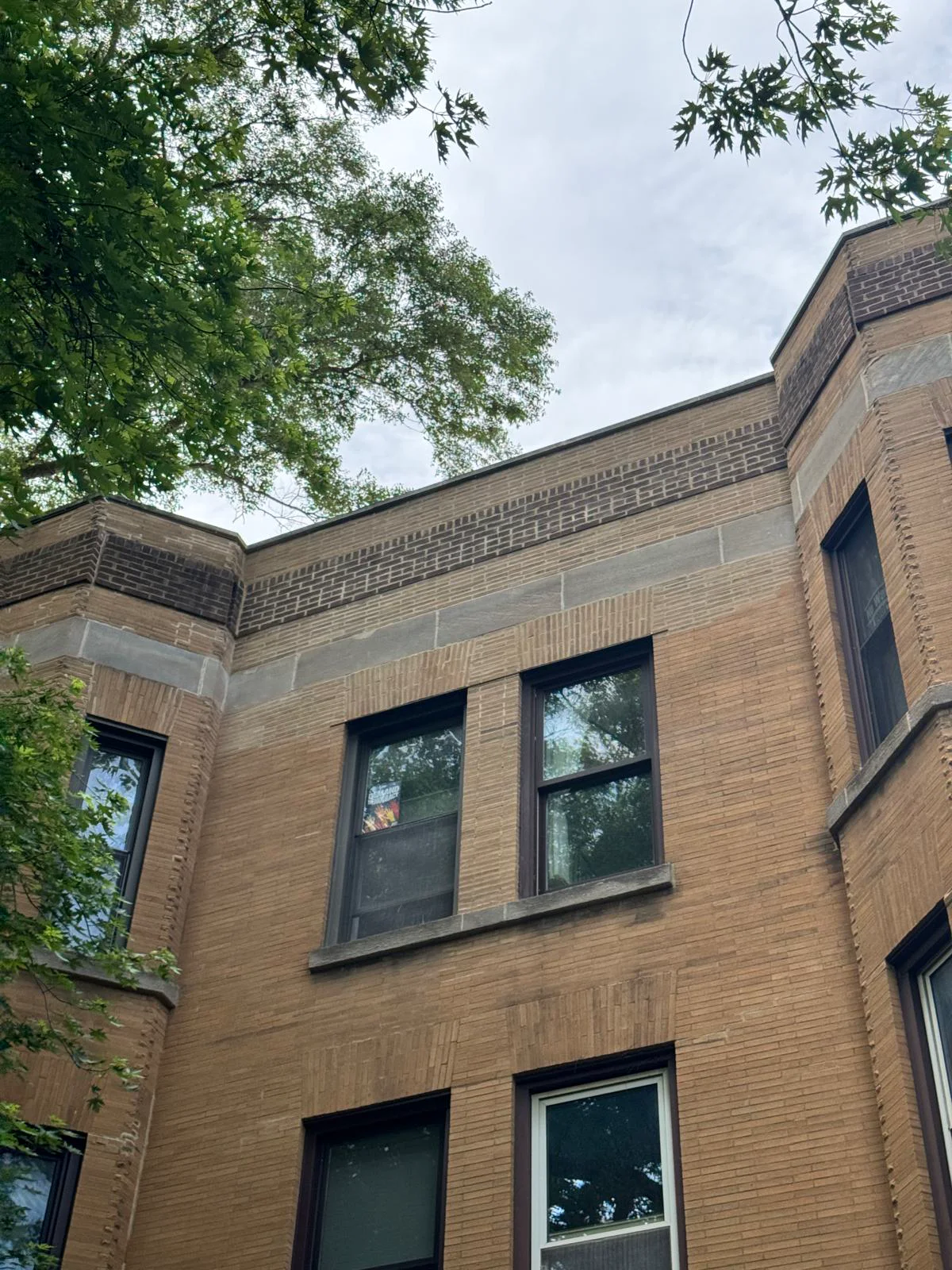

Chicago brick building after window lintel replacement and masonry restoration
After

The Hidden Cause

Why Lintels Fail: The Danger of “Rust Jacking”

The steel angle above your window or door is responsible for carrying the massive weight of the masonry above it. When that steel is exposed to moisture, it corrodes and begins to expand—a destructive process known as rust jacking. This expansion exerts incredible pressure, forcing the surrounding brickwork apart.

Stair-Step Cracks

Cracks that follow mortar joints diagonally away from the top corners of your window.

Horizontal Cracking

A crack running straight across the mortar joint right above the opening.

Rust Stains

Orange or brown streaks bleeding through the brick or mortar.

Deflection

Bricks above the window that appear to sag, bow, or protrude outward.

The Warning

Caulking over these cracks makes the problem worse by trapping more moisture inside. When the steel is badly rusted, the lasting fix is replacing it and flashing the opening properly.

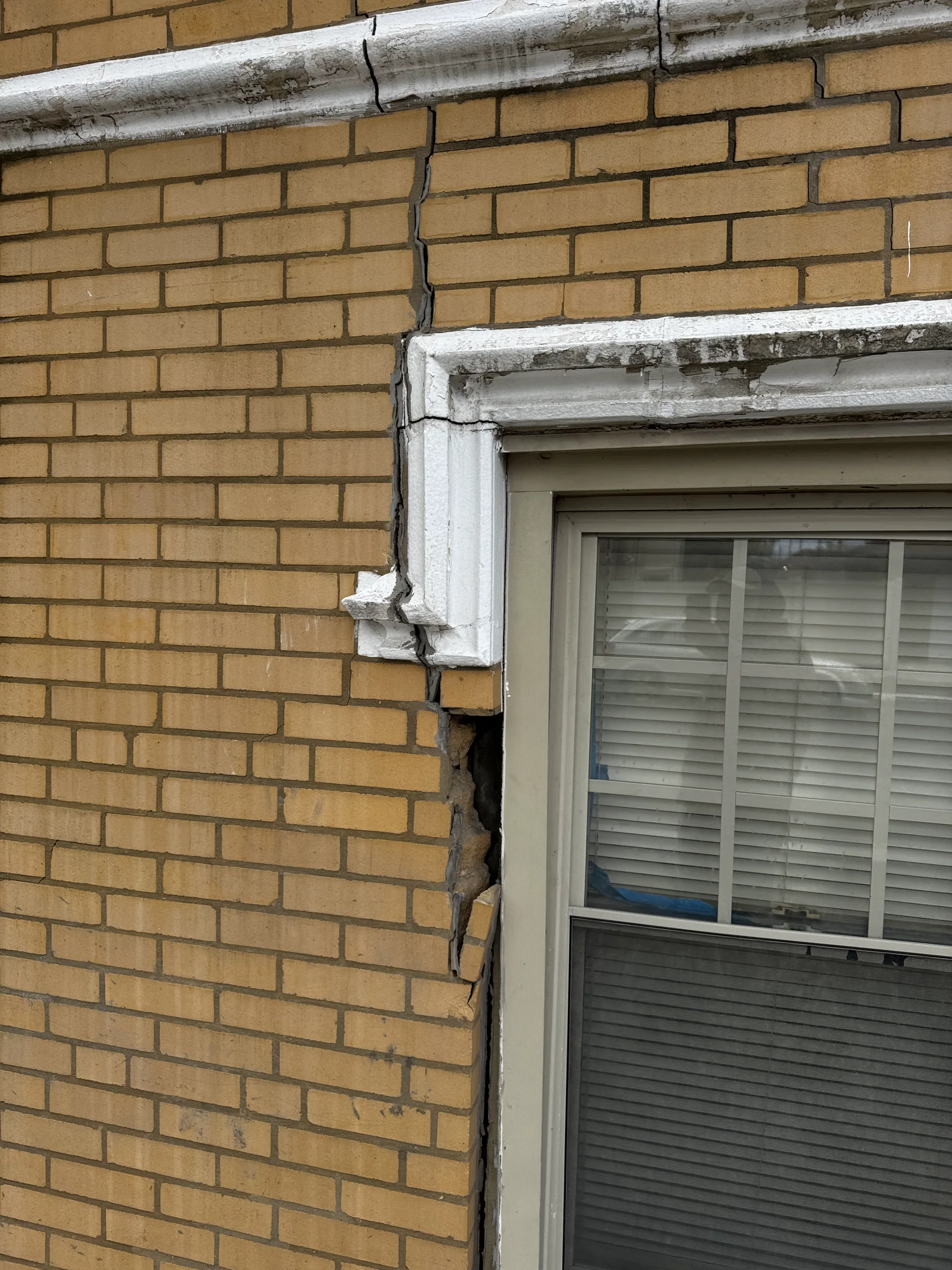

Severe cracking and separation beside a Chicago window caused by a failing lintel
Visible cracking at the opening

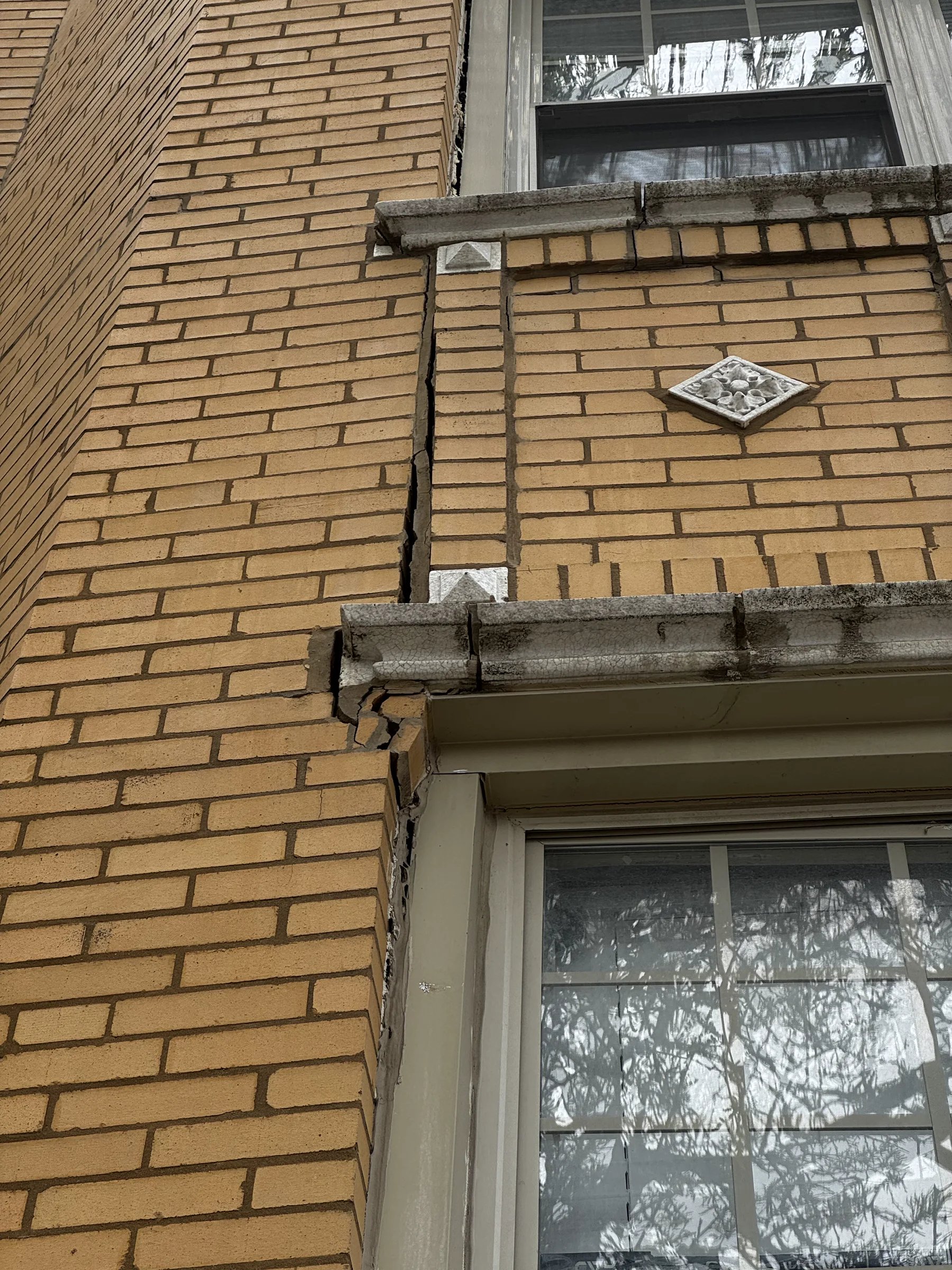

Stair-step cracking around a window opening on a Chicago brick building
Masonry displaced by hidden steel failure

Structural Repair, Matched Finish

How We Restore Your Masonry

01

Structural Support

Before removing any masonry, we install temporary shoring to safely carry the load of the building while we work.

02

Lintel Replacement

We carefully remove the bricks above the window, extract the rusted lintel, and install a properly sized, properly primed and painted / galvanized steel replacement.

03

Flashing, End Dams & Weeps

Before the brick goes back, we install self-adhesive rubberized asphalt flashing over the new lintel with end dams at both sides, a stainless steel drip edge, and weep ropes so water that gets into the wall drains out instead of rusting the new steel.

04

Matching Brick and Mortar

We relay the brick and color-match the new mortar to your existing wall, so the repair keeps your home's original look.

Visual Proof

Lintel & Flashing Repair, Start to Finish

01

Ravenswood  ·  7 photos

Galvanized Lintel Upgrade & Flashing

Before: What We Found

The steel lintel over the patio door had rusted through and was splitting apart. Rust was flaking off the steel and the brick above the opening was no longer sitting on solid support.

During: How We Fixed It

  1. Took down the brick above the opening and removed the rusted lintel.
  2. Installed a new galvanized steel lintel, which holds up to rust far longer than plain steel.
  3. Covered the lintel with self-adhesive rubberized asphalt flashing with end dams.
  4. Set a stainless steel drip edge and weep ropes so water drains out of the wall.
  5. Rebuilt the brick above the opening.

After: The Result

The opening now has a galvanized lintel with flashing, a stainless steel drip edge, and weep ropes, so water that gets into the wall drains back out instead of sitting on the steel.

1 / 7

02

Wrigleyville  ·  5 photos

Lintel Replacement & Window Masonry

Before: What We Found

The hidden steel lintels over the windows had rusted and expanded ('rust jacking'). The expansion pushed the brick above the openings and the pier between the windows outward, creating a structural safety risk and allowing moisture into the wall.

During: How We Fixed It

  1. Temporarily shored the masonry above the openings.
  2. Carefully took down the damaged brick around the windows.
  3. Removed the rusted steel lintels completely.
  4. Installed new heavy-duty structural steel lintels.
  5. Installed flashing over the new steel to keep water off it.
  6. Rebuilt the pier between the windows and the surrounding brick using reclaimed brick and custom-blended mortar to match the original.

After: The Result

Straight, safe window openings with new steel and flashing. Flashing over the new lintels sends water back out of the wall, and the building keeps its original look.

1 / 5

03

Noble Square  ·  5 photos

Flashing Installation on Limestone Door Sill

Before: What We Found

The limestone sill below sliding door, with no working flashing underneath. Water running off the door was getting into the wall and unit below it.

During: How We Fixed It

  1. Lifted the limestone sill and cleaned the opening down to a solid base.
  2. Installed new stainless steel flashing under the door opening.
  3. Set a stainless steel drip edge to carry water out past the face of the wall.
  4. Sealed the flashing and drip edge with DOWSIL 791 silicone weatherproofing sealant.
  5. Reset the limestone sill over the new flashing.

After: The Result

The limestone sill is back in place with stainless steel flashing and drip edge underneath, sealed with DOWSIL 791, so water now sheds off the deck instead of getting into the wall and the unit below.

1 / 5

04

Oak Park  ·  8 photos

Sill Flashing Installation & Lintel Replacement

Before: What We Found

The window sills had no working flashing underneath, and the steel lintel over one window had rusted, letting water into the wall around the openings.

During: How We Fixed It

  1. Removed the window sill and cleaned the opening down to a solid base.
  2. Set a new drip edge to carry water out past the face of the wall.
  3. Installed and sealed new flashing under the sill, then reset the sill.
  4. Took down the brick above the window and removed the rusted lintel.
  5. Installed a new steel lintel with flashing over it, then rebuilt the brick to match.

After: The Result

The sills and the window opening are now flashed and weatherproofed, with a new steel lintel carrying the brick above, so water sheds out of the wall instead of getting into it.

1 / 8

Engineering & Repair Guide

Diagonal Cracks Above Your Windows? Why Caulking Makes It Worse

Learn how rust jacking expands steel lintels and how proper temporary shoring and steel replacement stops stair-step brick cracking.

What clients say

Work That Earns Repeat Calls and Referrals

“Just had our 1941 house totally tuckpointed and lintels replaced by Star Tuckpointing. They do not try and ‘upsell’ and will give you an honest opinion of what needs to be done. Saved me $1,500!”

Verified Chicago Homeowner — Lintel Replacement & Tuckpointing

“When fielding bids for the work, Star Tuckpointing proved to have the widest knowledge base and experience. An artist's touch, really. It looks fantastic.”

Verified Customer Review — Structural Lintel Replacement
Read more customer reviews & view our project map →

FAQ

Window Lintels & Sill Flashing: Common Questions

What is a window lintel and why does it rust?

A window lintel is the steel angle iron that supports the brick above a window opening. Lintels rust when moisture reaches unprotected steel. Rust expands the steel, pushing outward and causing stair-step cracks in the brick above the window.

How much does window lintel replacement cost?

Window lintel replacement typically costs $800 to $3,000 per window, depending on lintel size, brick damage, and access. If the surrounding brick has cracked or shifted, brick replacement adds to the cost. The written estimate is free.

How long does window lintel replacement take?

Most replacements take no more than one day per opening. That covers supporting the brick, removing the old steel, installing the new lintel, and rebuilding the brick. New lintels are properly primed and painted / galvanized steel to slow future rust.

Why does a stone sill need flashing underneath?

Stone and limestone sills have joints that open up over time. Water running off a window or door soaks through them into the wall and the room or unit below. Flashing with a drip edge under the sill catches that water and sends it back outside. We lift the sill, install new flashing and a stainless steel drip edge, and reset the sill.

Is your work covered by a warranty?

Yes. Our lintel replacements carry a 3-year labor and material warranty.
